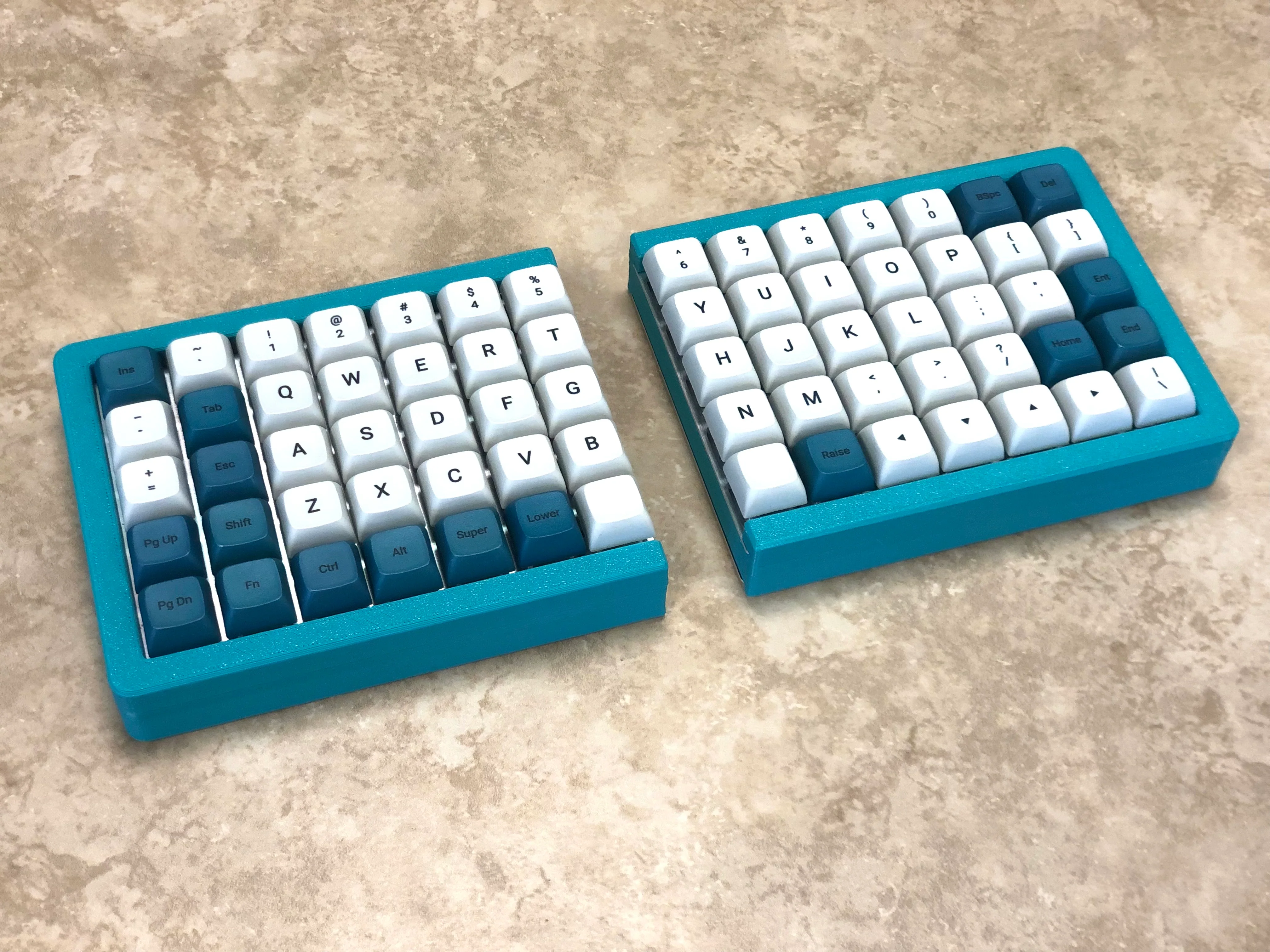

Levinson Keyboard - 40% Split Ortholinear (Let's Split) - PCB Kit
The Levinson an improved version Let's Split and adds LED backlight and 2u key support. Supports MX/Alps/Choc switches.
There are three different types of Levinson PCBs currently available:

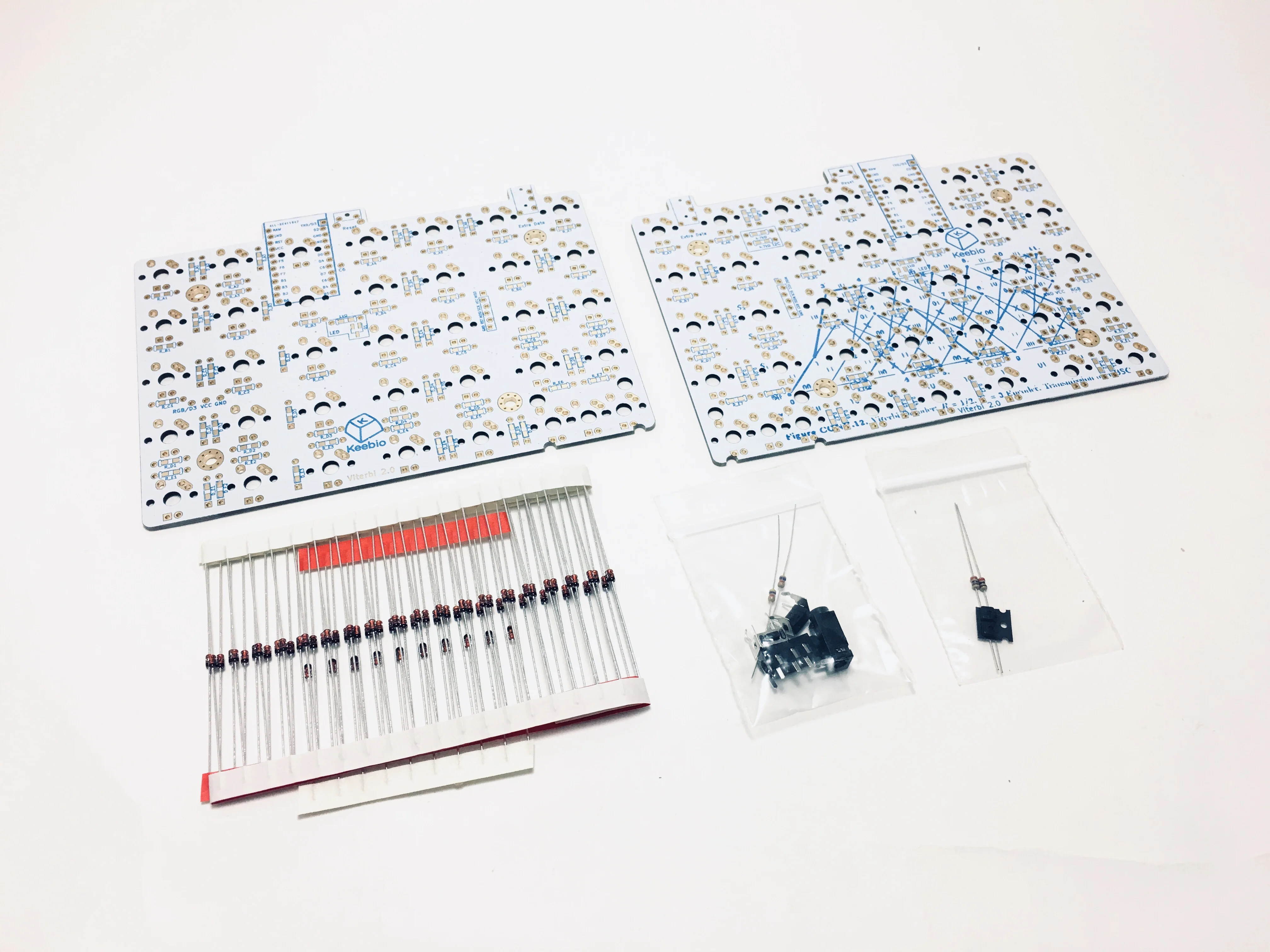

- Levinson Rev. 3 PCB Kit (this item): More DIY involved, where you have to solder on diodes/resistors/Pro Micro yourself
- Nyquist/Levinson Rev. 3 (see the product page): Less DIY involved. Already has everything except switches soldered to it. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
- Nyquist/Levinson Rev. 4 (see the product page): Has MX-compatible hotswap sockets and per-key RGB LEDs pre-soldered on. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
Layout

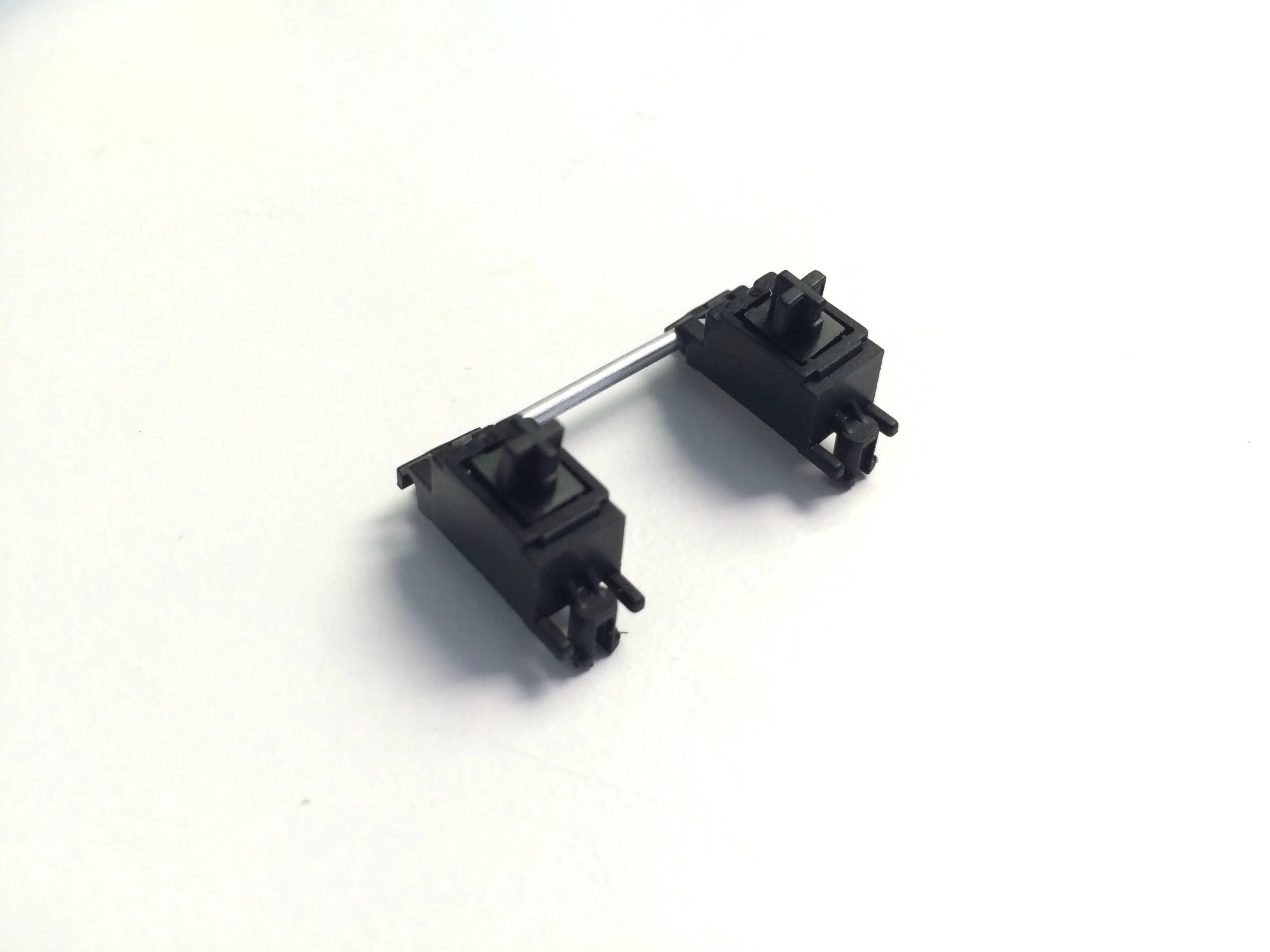

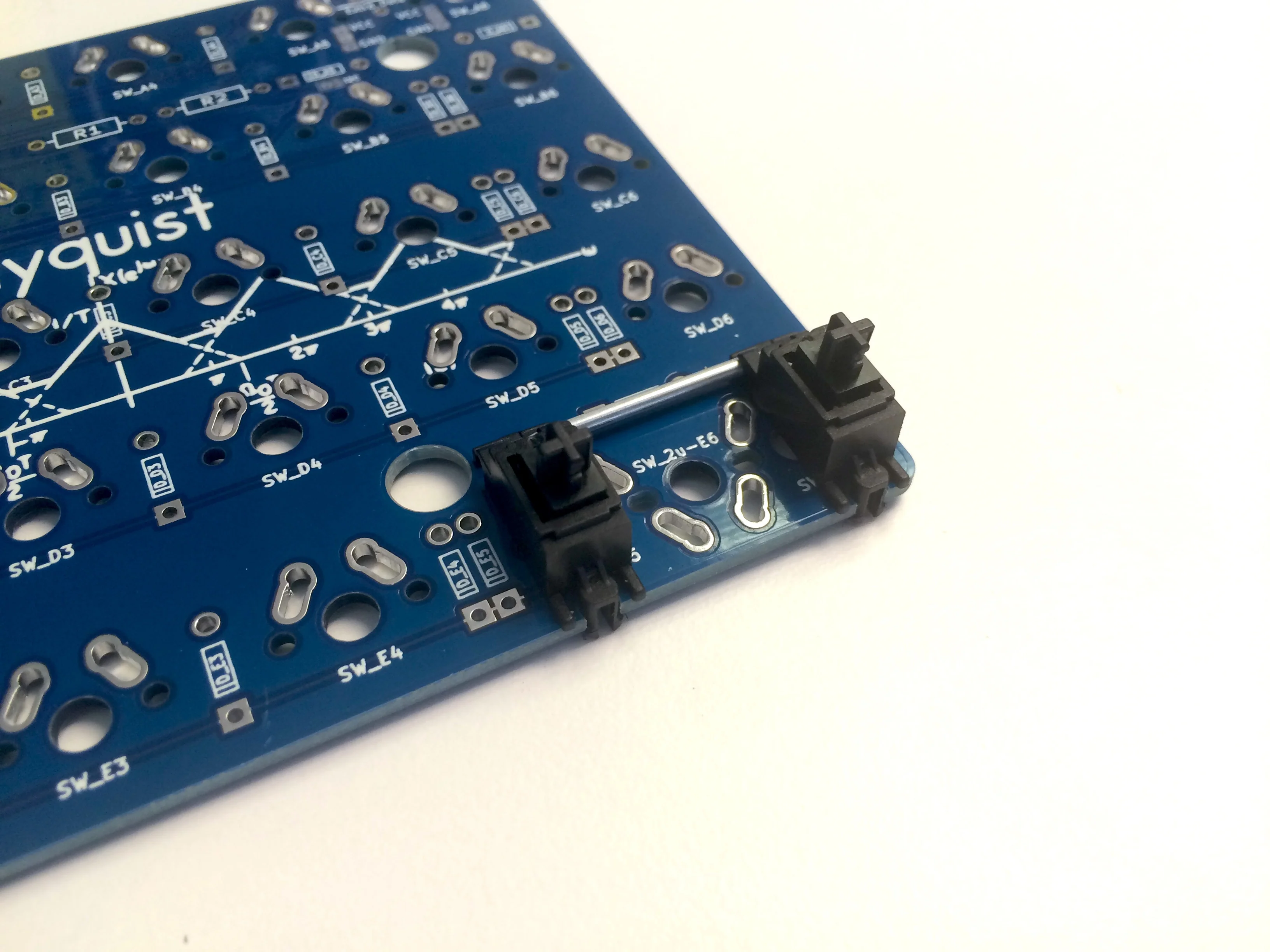

Each half of the board is a 4x6 matrix, but there is the option to have a 2u key in the innermost corners in place of 2 1u keys. The spot for the 2u has holes for Cherry PCB mounted stabilizers. This layout needs 48 keycaps.
Original: $14.99
-65%$14.99
$5.25
Description
The Levinson an improved version Let's Split and adds LED backlight and 2u key support. Supports MX/Alps/Choc switches.
There are three different types of Levinson PCBs currently available:
- Levinson Rev. 3 PCB Kit (this item): More DIY involved, where you have to solder on diodes/resistors/Pro Micro yourself
- Nyquist/Levinson Rev. 3 (see the product page): Less DIY involved. Already has everything except switches soldered to it. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
- Nyquist/Levinson Rev. 4 (see the product page): Has MX-compatible hotswap sockets and per-key RGB LEDs pre-soldered on. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
Layout
Each half of the board is a 4x6 matrix, but there is the option to have a 2u key in the innermost corners in place of 2 1u keys. The spot for the 2u has holes for Cherry PCB mounted stabilizers. This layout needs 48 keycaps.
